Common Transistor Interchange Guide: What Can You Use When 2N2222 Is Out of Stock?

Your production line is halted because a simple 2N2222¹ transistor is missing. You feel the pressure rising as delivery dates approach, and you need a reliable solution immediately.

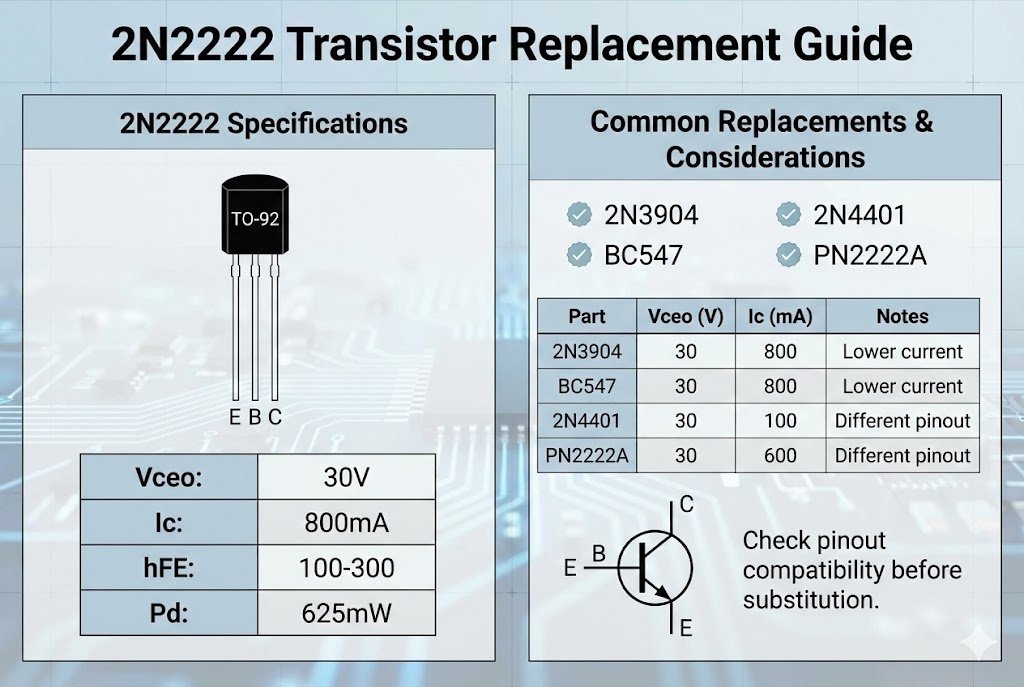

The best substitutes for a 2N2222¹ transistor are the 2N3904² for general use, the BC547³ for low-current applications, and the MMBT2222A⁴ for surface-mount designs. Always check the pinout configuration and current rating (Ic) before swapping to ensure your circuit remains stable.

I have seen this situation happen many times with our OEM clients at NexCir. A tiny component costs pennies, but its absence costs thousands of dollars in delays. You do not always need the exact part number to keep the factory running. You just need a part that does the job correctly. Let me guide you through the technical details and safe alternatives so you can make a confident decision.

What Are the Critical Specifications of the 2N2222¹?

You cannot choose a safe replacement if you do not understand what the original part does. Ignoring the specific voltage and current limits of the 2N2222¹ is the fastest way to burn out a circuit board.

The 2N2222¹ is an NPN Bipolar Junction Transistor (BJT). Its critical specifications include a Collector-Emitter Voltage (Vce) of 30V (40V for the 2N2222A⁵](1A">https://arxiv.org/pdf/1209.4157)¹A), a Continuous Collector Current (Ic)⁶ of 800mA, and a typical Gain (hFE)⁷ between 100 and 300.

To find a replacement, we must look deeper at these numbers. I often see engineers confuse the 2N2222¹ with the 2N2222A⁵](1A">https://arxiv.org/pdf/1209.4157)¹A. The "A" version is an upgrade. It handles higher voltage. If your circuit runs on 24V or higher, using a standard 2N2222¹ without the "A" might be risky because it is too close to the breakdown limit.

Here is a breakdown of the parameters you must match:

When I source components for industrial clients, I focus heavily on the Collector Current (Ic)⁶. This is the main trap. The 2N2222¹ is a "workhorse" because it handles almost 1 Ampere of current. Many small transistors look the same but can only handle 0.1 Amperes. If you use a weak substitute to drive a motor or a relay, it will overheat and fail instantly.

Which Through-Hole Transistors Are Direct Equivalents?

You are likely looking for a part you can solder into the same holes on the PCB. Finding a direct replacement that requires no circuit changes is the goal for most maintenance engineers.

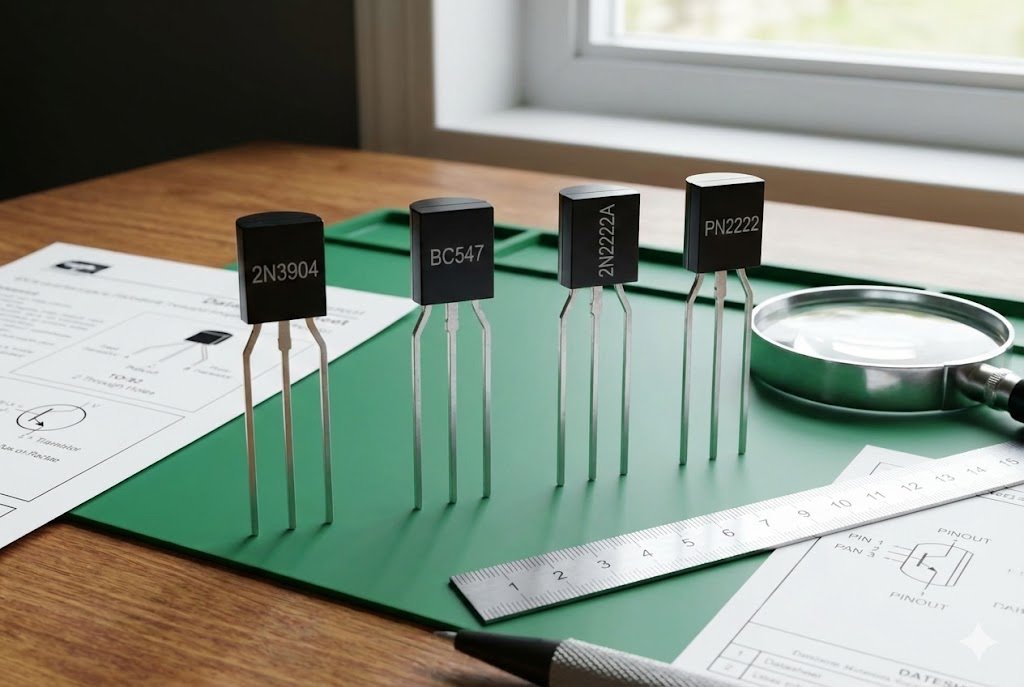

For general switching and logic circuits, the 2N3904² and 2N4401⁹ are excellent choices. If you are in Europe, the BC547³ is very common, but you must be careful with the pin layout and current limits.

Let's analyze these options. I want to help you verify which one fits your specific board.

1. The 2N3904² (The Common Cousin) This is the most popular alternative. It is cheap and available everywhere.

• Pros: Same pinout (E-B-C), very similar availability.
• Cons: Max current is only 200mA.
• Verdict: Use this for LED drivers or signal processing. Do NOT use this for motors or relays that pull more than 200mA. The 2N2222¹ is much stronger.

2. The 2N4401⁹ (The Heavy Lifter) This is often a better match than the 2N3904².

• Pros: Max current is 600mA, which is very close to the 2N2222¹. Same pinout.
• Cons: Slightly less common in hobbyist kits, but easy for us to source industrially.
• Verdict: This is the safest direct replacement for most loads.

3. The BC547³ / BC548 (The European Standard) If your machine comes from Europe, it might use these.

• Pros: Very easy to find.
• Cons: Max current is only 100mA. The Pinout is often reversed (C-B-E instead of E-B-C).
• Verdict: Only use this for low-power signals. You must twist the legs to match the holes, which is bad for mass production but okay for a quick repair.

Here is a quick reference table for through-hole selection:

At NexCir, when a client asks for a 2N2222¹ in a plastic package, we usually supply the PN2222A or P2N2222A⁵](1A">https://arxiv.org/pdf/1209.4157)¹A. Note that different manufacturers (like ON Semi vs. Fairchild) might have different pinouts for the P2N series. Always check the datasheet for the specific brand you buy.

How Do I Replace 2N2222¹ with SMD¹⁰ or Power Components?

Modern electronics rarely use the old plastic TO-92 packages, and sometimes you need even more power than the original part could handle. What do you do then?

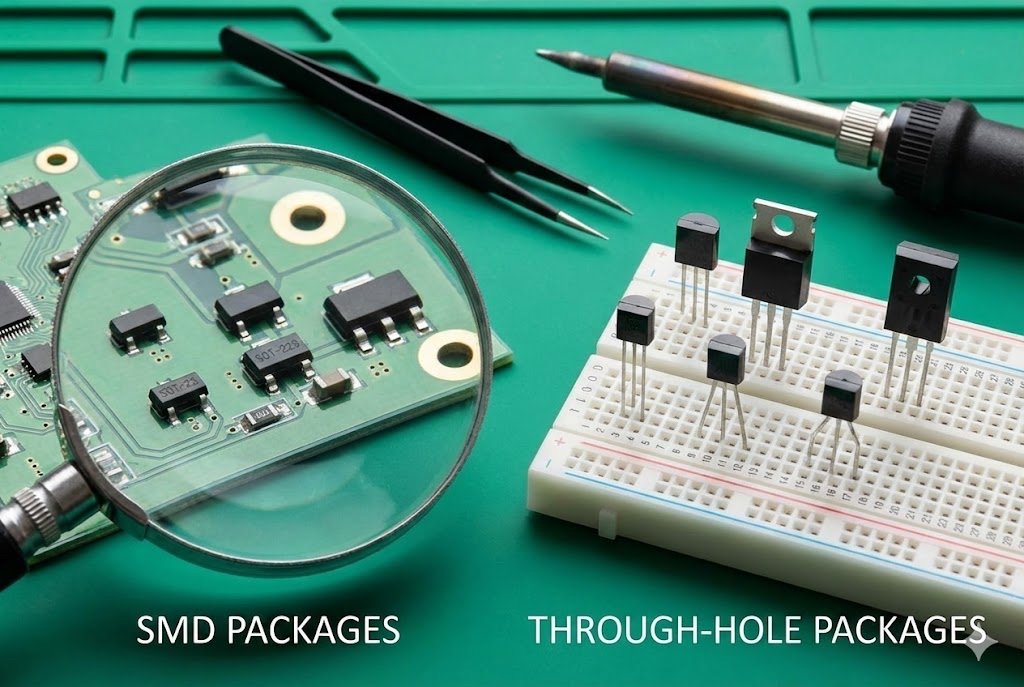

For surface mount designs (SMD¹⁰), the direct equivalent is the MMBT2222A⁴ (SOT-23 package). If you need to drive a heavy load like a large solenoid, you should upgrade to a Darlington transistor like the TIP120¹¹.

Let's break this down into two scenarios: Modernizing and Upgrading.

Scenario A: Modernizing to Surface Mount (SMD¹⁰) If you are redesigning a board or sourcing for a modern factory, you are likely using SMT (Surface Mount Technology). The TO-92 package is getting older and harder to assemble automatically.

• The Part: MMBT2222A⁴
• The Package: SOT-23. It is tiny.
• The Specs: It is electrically identical to the 2N2222A⁵](1A">https://arxiv.org/pdf/1209.4157)¹A. It handles the same voltage and current. However, because it is small, it cannot get rid of heat as well.
• My Advice: If your original 2N2222¹ was getting hot, the MMBT2222A⁴ might burn up. In that case, look for the PZT2222A¹² which comes in a SOT-223 package. It has a larger metal tab to cool it down.

Scenario B: Upgrading for Power Sometimes the 2N2222¹ fails because the design was bad. The load was too heavy. Replacing it with the same part will just cause another failure next week. You need a stronger component.

• The Part: 2N2219A¹³
• The Package: TO-39 (Metal Can). This is the "big brother." It handles heat much better than the plastic version.
• The Power Move: TIP120¹¹. This is a Darlington pair. It fits in a TO-220 package (big with a metal tab).
• Trade-off: The TIP120¹¹ has a higher voltage drop (about 1.2V to 2V) compared to the 2N2222¹ (0.2V). This means it wastes a little more power, but it can switch huge loads easily.

Cross-Reference for Package Types¹⁴:

I always tell R&D teams: Do not just copy the old BOM. If we are sourcing parts for a new production run, let's check if we can move to the MMBT2222A⁴. It is cheaper and easier to find in high volume than the old leaded parts.

Conclusion

Finding a substitute for the 2N2222¹ is easy if you pay attention to the current rating and the pinout. For most low-power tasks, the 2N3904² works fine. For higher loads, stick to the 2N4401⁹ or the P2N2222A⁵](1A">https://arxiv.org/pdf/1209.4157)¹A. If you are building modern boards, the MMBT2222A⁴ is your standard choice.

At NexCir, we do not just sell parts; we help you keep your production line moving. If you are struggling with component shortages or need help validating a BOM for long-term production, upload your list to us today. We verify the originals and the alternatives to ensure you get stable, authentic supply.
