How Can the 74HC86 XOR Gate Revolutionize Your Digital Circuit Designs?

Do you struggle with complex logic circuits that consume too much power? You might be using the wrong components for your digital design needs.

The 74HC86¹ is a high-speed CMOS² Quad 2-Input Exclusive-OR (XOR) gate that offers low power consumption³ and high noise immunity⁴. It is the perfect solution for building arithmetic circuits, error detection systems⁵, and phase detectors⁶ in modern electronics.

You now know the basic definition of this component. But knowing what it is is only the first step. To truly master digital design, you need to understand how it works and where to use it. I will explain the details below.

What Is the Working Principle Behind the 74HC86¹ XOR Gate?

Logic gates can feel abstract and confusing when you first start. You need a simple way to visualize how inputs create specific outputs.

The XOR gate, or Exclusive-OR gate, produces a high output only when the inputs are different. This unique behavior makes it distinct from standard OR gates.

I want to break this down further because understanding the core logic is vital. The 74HC86¹ contains four independent XOR gates in a single package. The term "Exclusive" is the key here. In a normal OR gate, if both inputs are high (1), the output is high (1). But in an XOR gate, if both inputs are high, the output is low (0). It effectively says, "I want one or the other, but not both."

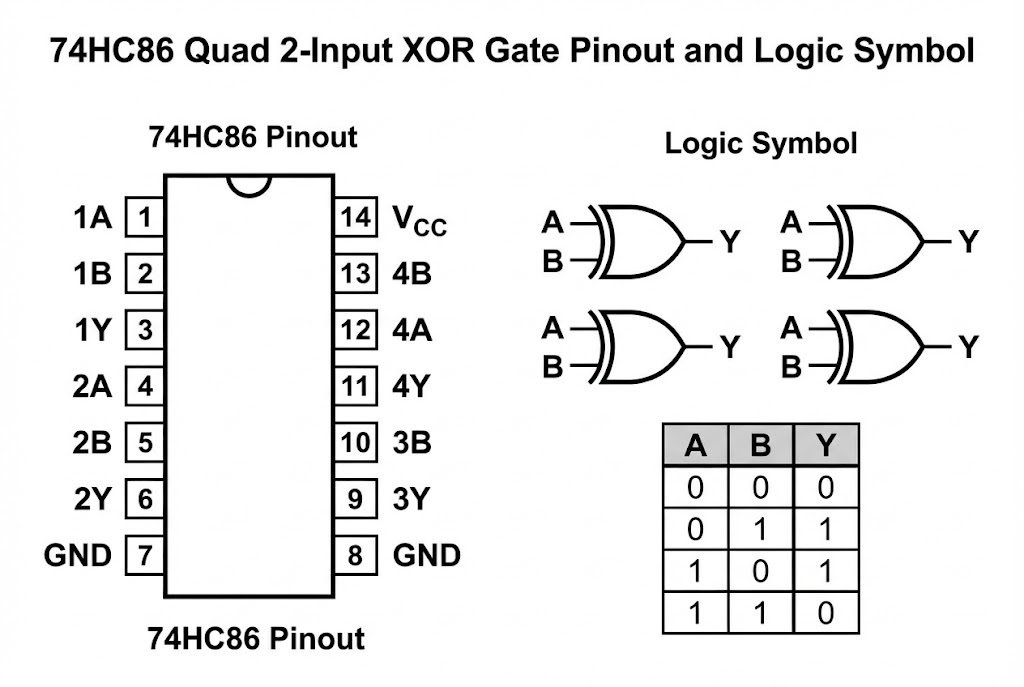

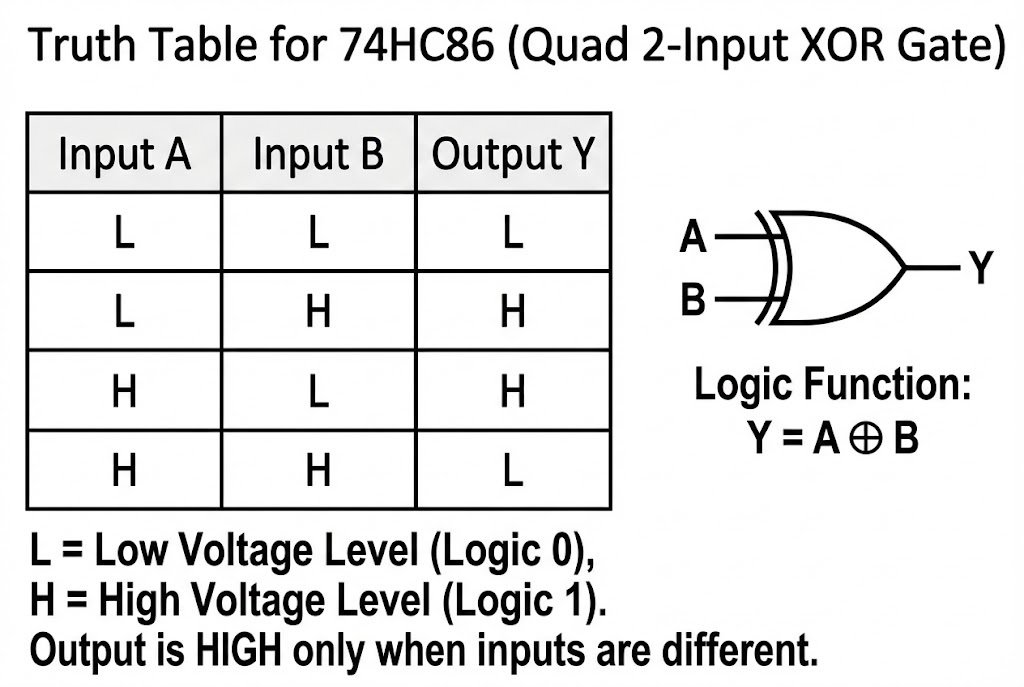

Here is a simple Truth Table to help you visualize this:

This behavior is incredibly useful. I often think of it as a "difference detector." If the two voltage levels coming into the chip are not the same, the chip alerts you with a high signal. This simple logic forms the foundation for computer arithmetic. When a computer adds numbers, it uses this exact logic to calculate the sum bit. Without the 74HC86¹, performing binary addition⁷ would require many more transistors and complex wiring.

Why Is the 74HC Series Superior for Modern Applications?

Old logic families like the 74LS series consume a lot of power. You need components that are fast, efficient, and compatible with modern battery-operated devices.

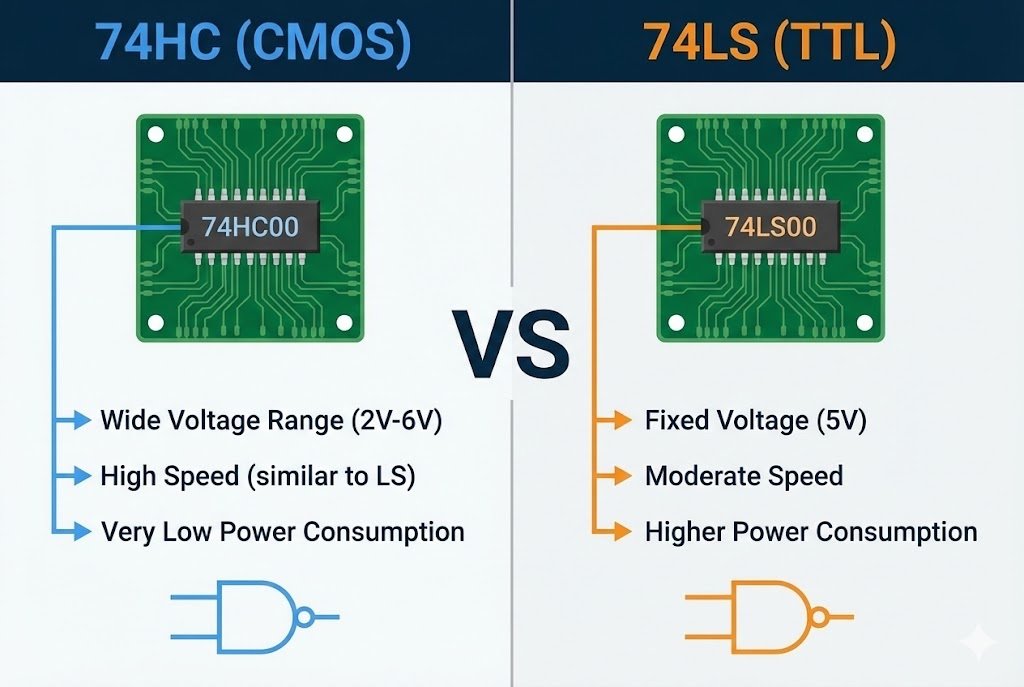

The 74HC series⁸ stands for High-speed CMOS, offering the low power usage of CMOS with the speed of the older TTL families.

I have seen many engineers stick to older parts simply out of habit. But shifting to the 74HC series⁸ is a game-changer. The "HC" stands for High-speed CMOS. In the past, we had to choose between speed (TTL) and low power (CMOS). The 74HC series⁸ gives us the best of both worlds.

Let's look at the voltage range. The 74HC86¹ works reliably anywhere from 2V to 6V. This is a wide range. It means you can power these chips with a standard 5V supply, or run them directly off a 3.3V battery system without needing complex voltage regulators.

Another major advantage is noise immunity⁴. In industrial environments, electrical noise is everywhere. Motors, switches, and power lines create spikes. The 74HC series⁸ has better input hysteresis than older models. This means it is less likely to interpret a random spike of noise as a real data signal.

At Nexcir, we see a lot of demand for these chips because they are robust. They drive LEDs directly because they have good output current capability⁹. They are also pin-compatible¹⁰ with the older 74LS series. This means you can often pull out an old, power-hungry chip and replace it with a 74HC version to save energy instantly. It is a simple upgrade that extends the life of your hardware.

What Are the Practical Applications of the 74HC86¹ in Real Circuits?

Theory is useless if you cannot apply it to build something real. You need to know how to use this chip to solve actual design problems.

The 74HC86¹ is widely used for binary addition⁷, controllable signal inversion, and digital phase detection in communication systems.

I want to share some specific ways I have seen this chip used effectively. These are not just textbook examples; they are real-world solutions.

1. The Controlled Inverter This is my favorite trick. You can use one input of the XOR gate as a control line.

• If you set the Control Input to 0 (Low), the other input passes through unchanged. The signal is buffered.
• If you set the Control Input to 1 (High), the output becomes the inverse of the other input. This effectively acts as a programmable NOT gate. You can switch the polarity of a signal using software commands. This is very useful in communication protocols where signal polarity might change.

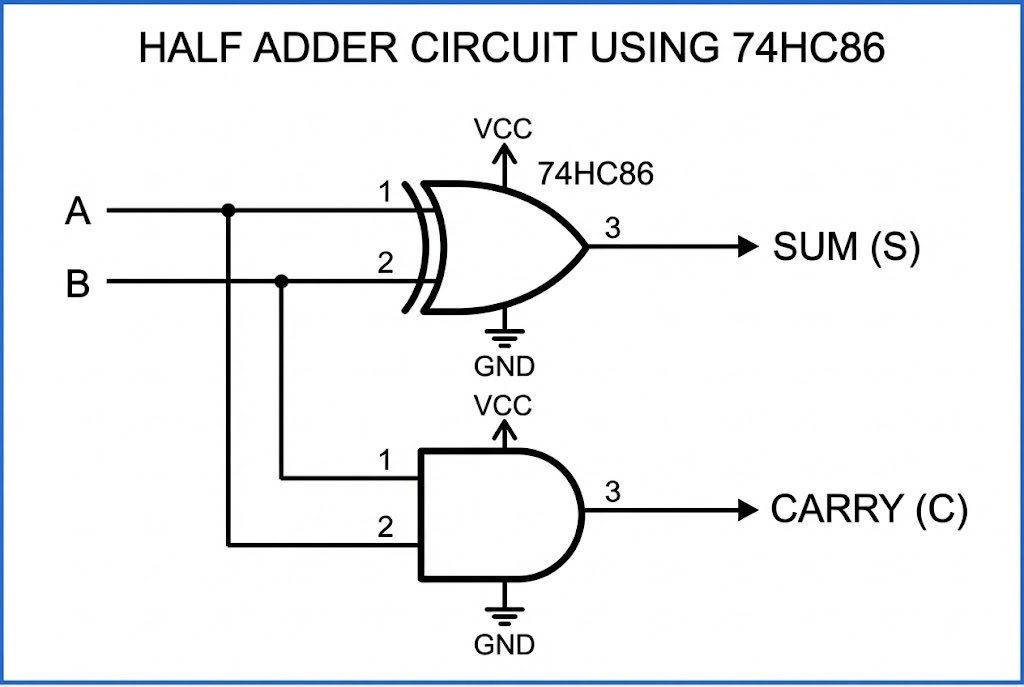

2. The Half Adder¹¹ As mentioned earlier, computers do math. The 74HC86¹ is the heart of the "Half Adder¹¹" circuit.

• Sum Output: The XOR gate produces the sum. 1 + 0 = 1.
• Carry Output: You pair the XOR gate with an AND gate (like the 74HC08) to handle the "carry" bit. This is the fundamental building block of every CPU in existence.

3. Frequency Doubler You can even use the 74HC86¹ to double the frequency of a clock signal. By feeding a clock signal into one input, and a slightly delayed version of that same signal (using an RC circuit) into the other input, the XOR gate triggers on both the rising and falling edges. This creates an output pulse twice as fast as the input. It is a cheap and effective way to speed up a system without buying a new crystal oscillator.

How Can You Source Authentic TI and Nexperia¹² 74HC Chips?

Buying counterfeit components can destroy your project and waste your budget. You need a reliable source for genuine parts to ensure your lab runs smoothly.

Nexcir provides 100% authentic 74HC series⁸ chips from top manufacturers like Texas Instruments¹³ and Nexperia¹² to schools, labs, and OEMs globally.

I cannot stress enough how important authenticity is. In my 20 years in this industry, I have seen nightmares caused by fake chips. A university lab might buy a batch of cheap "74HC86¹" chips online. Students spend weeks trying to debug their circuits. They think their logic is wrong. But actually, the chip is just a piece of plastic with no silicon inside, or it is a rejected part that failed quality control.

At Nexcir, we solve this pain point. We only source from authorized channels. We focus heavily on the brands that set the standard: Texas Instruments¹³ (TI) and Nexperia¹². These are the gold standards for logic ICs.

Here is a list of the essential 74HC inventory that every school lab and R&D center should have on hand. We keep these in stock because they are the "bread and butter" of digital electronics:

• 74HC00: Quad 2-Input NAND Gate (The universal gate).
• 74HC04: Hex Inverter (NOT Gate).
• 74HC08: Quad 2-Input AND Gate.
• 74HC32: Quad 2-Input OR Gate.
• 74HC86¹: Quad 2-Input XOR Gate (The star of this article).
• 74HC74: Dual D-Type Flip-Flop (For memory and state machines).
• 74HC595: 8-Bit Shift Register (For expanding output pins).

We understand that schools and research institutions need small quantities quickly, while OEMs need large reels for production. We handle both. We ensure that the date codes are recent and the packaging is moisture-controlled. When you build a circuit with a chip from Nexcir, you know that if it fails, it is a design error, not a bad part. This peace of mind is what we deliver alongside the hardware.

Conclusion

The 74HC86¹ XOR gate is a versatile, efficient component essential for arithmetic and logic correction. By choosing authentic TI or Nexperia¹² parts from Nexcir, you ensure your designs are reliable and robust.
