What Is the 2N2222A NPN Transistor: Pinout, Datasheet, and High-Speed Switching Uses?

Struggling to find a reliable transistor for your fast switching circuits? Counterfeit parts can ruin your whole design. I will show you why the 2N2222A is the perfect fix.

The 2N2222A is a common NPN bipolar junction transistor (BJT). Engineers use it for low-power amplifying and high-speed switching¹g](https://forum.digikey.com/t/why-the-2n2222-transistor-won-when-a-part-becomes-infrastructure/65605)%%%FOOTNOTE_REF_2%%% applications. It handles up to 800mA of collector current³ and operates at high frequencies, making it ideal for driving motors, LEDs, and small signal amplifiers in electronic circuits.

You might wonder how this tiny component can handle so much work without failing. I remember building my first motor driver board years ago, and choosing the wrong transistor caused a total meltdown. I quickly learned that understanding the exact pinout and specs is the only way to avoid costly mistakes. Let us break down everything you need to know about the 2N2222A so you can use it safely in your next project.

How Do You Read the 2N2222A Pinout and Datasheet?

Wiring a transistor backward will destroy your board. Guessing the pinout wastes time and money. I will explain the exact pin connections to keep your project safe.

The 2N2222A has three pins: Emitter, Base, and Collector. When looking at the flat side of the TO-92 package, pin 1 is the Emitter, pin 2 is the Base, and pin 3 is the Collector. The datasheet confirms it handles 40V maximum collector-emitter voltage⁴.

Breaking Down the Technical Specs

Reading a datasheet can feel overwhelming. I look at datasheets every day to help OEMs source the right parts. You just need to focus on a few key numbers to know if the 2N2222A fits your design. The absolute maximum ratings tell you the limits of the transistor. If you go past these limits, the part will burn out. We always double-check these numbers before shipping parts to our buyers.

Here is a simple table showing the most important values from the standard 2N2222A datasheet:

Why These Numbers Matter

The 800mA collector current is very high for a small TO-92 package. This means you can drive small relays and motors directly from a microcontroller. However, you must watch the power dissipation. Even if the current is below 800mA, too much voltage drop across the transistor will cause it to overheat. I always advise my hardware engineer clients to leave a 20 percent safety margin. If your circuit needs 800mA constantly, you should upgrade to a larger package. But for short bursts, the 2N2222A handles the load perfectly.

How Does the 2N2222A Perform in Small Signal Amplification?

Weak audio signals lead to poor sound quality. Fixing low gain problems is frustrating. The 2N2222A boosts weak signals easily to give you clear and strong outputs.

The 2N2222A performs very well in small signal amplification⁵ because it has a high DC current gain (hFE) of up to 300⁶. It takes a tiny base current and multiplies it, making it perfect for audio pre-amplifiers, sensor signal boosting, and radio frequency circuits.

Understanding Current Gain

When you use the 2N2222A as an amplifier, the most important spec is the DC current gain. Engineers often call this hFE or Beta. This number tells you how much the transistor will multiply the input signal. I once helped a client who could not get their sensor data to read correctly. The signal was just too weak. We added a simple 2N2222A amplifier circuit, and the problem was solved instantly.

Setting Up the Amplifier

To make the transistor act as an amplifier, you must keep it in the active region⁷. This means the base-emitter junction is forward-biased, and the base-collector junction is reverse-biased.

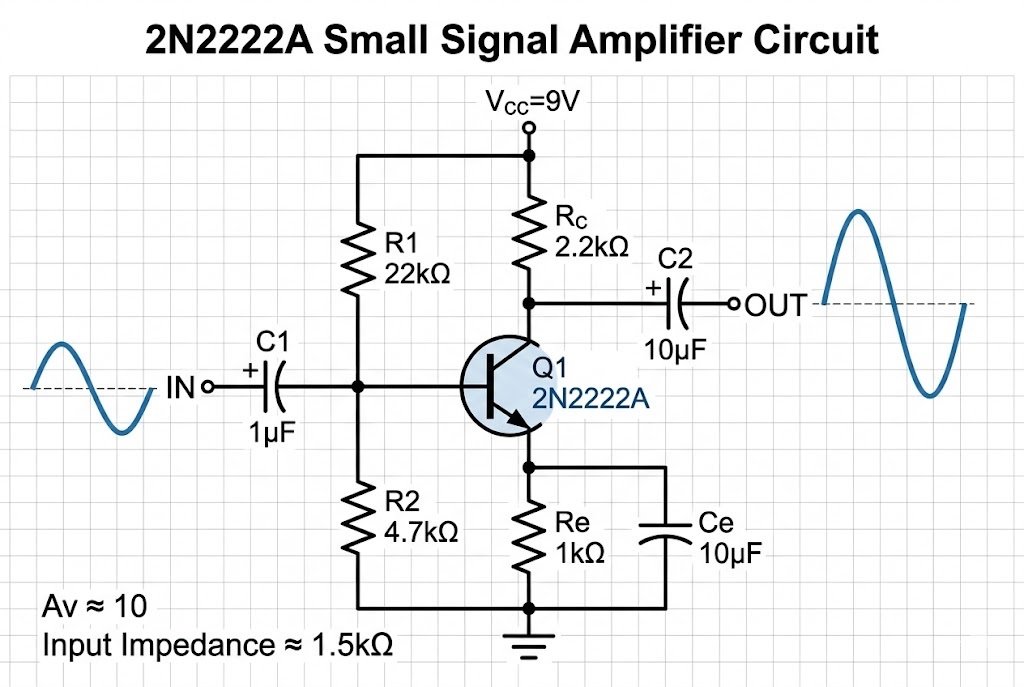

When you set up the biasing resistors⁸ correctly, a small change in the base current creates a large change in the collector current. The 2N2222A has a wide frequency response. It can handle signals up to 250 MHz. This high transition frequency⁹ makes it a great choice for both audio and radio frequency applications. I always recommend checking the input source impedance to match it properly. This ensures you get a clean output signal every single time without distortion.

Why Is the 2N2222A Excellent for High-Speed Switching Uses?

Slow switching causes heat buildup and power loss. Finding a fast and cheap switch is hard. The 2N2222A turns on and off instantly to keep your circuits running cool.

The 2N2222A is built for high-speed switching². It features a very low turn-on time of around 25 nanoseconds and a turn-off time of 60 nanoseconds. This fast response allows it to drive PWM signals, LEDs, and relays without wasting power or generating excess heat.

The Mechanics of Fast Switching

In digital electronics, you mostly use transistors as switches. You want the transistor to be fully on or fully off. I see many engineers use the 2N2222A to connect an Arduino or Raspberry Pi to a heavy load. The microcontroller can only output about 20mA. But a small DC motor might need 500mA. The transistor bridges this gap.

Timing and Efficiency

The speed of the switch is vital. If a transistor takes too long to change states, it spends too much time in the active region⁷. This wastes power as heat. The 2N2222A avoids this problem with its fast switching times¹⁰. You want your devices to last a long time without burning out.

These nanosecond speeds mean you can use high-frequency Pulse Width Modulation (PWM)¹¹ to control motor speed or dim LEDs smoothly. I always remind our buyers to use a base resistor. This limits the current flowing into the base and protects both the microcontroller and the transistor. Also, if you are switching an inductive load like a motor, you must add a flyback diode¹². This stops voltage spikes from destroying the 2N2222A when it turns off.

What Are Common Alternatives Like BC547 and How Do You Source Them?

Supply shortages can halt your production lines. Relying on just one part number is risky. I will show you exact alternatives so you never stop building.

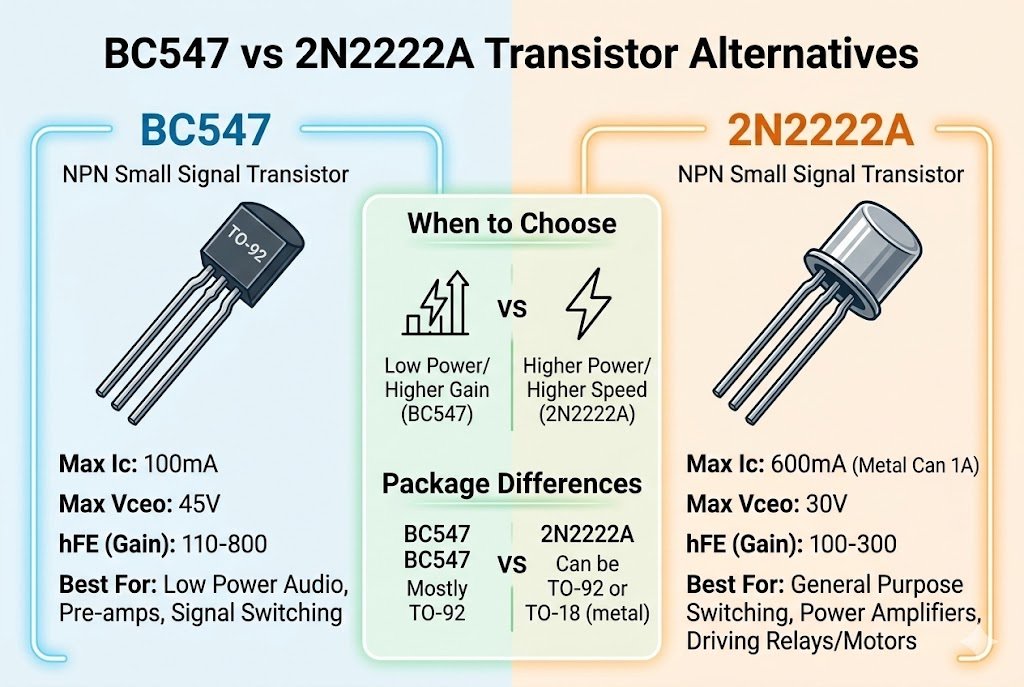

The BC547 and 2N3904 are the most common alternatives to the 2N2222A. The 2N3904 handles less current at 200mA. The BC547 is great for low-noise audio but only handles 100mA. You can easily swap these depending on your circuit power needs.

Choosing the Right Replacement

At Nexcir, my team and I spend a lot of time helping clients find alternatives for out-of-stock components. You cannot always find the exact part you want. Knowing how to cross-reference parts¹³ saves you from production delays¹⁴. The 2N2222A is popular, but sometimes you need a different option. We have over 20 years of experience to guide you through this process.

Comparing the Options

You have to match the specs to your specific need. If your circuit only uses 50mA, you have many choices. If you need the full 800mA, your choices drop quickly.

If you only need to drive a small LED, the BC547 is a perfect drop-in replacement. However, you must be careful with the pinout. The BC547 has a different pin order compared to the 2N2222A. I always warn my clients about this. Putting a BC547 into a 2N2222A socket backward will cause it to fail. If you need help sourcing original 2N2222A transistors or finding the right alternative, you can check our inventory at Nexcir. We ensure 100 percent authentic parts from authorized channels.

Conclusion

The 2N2222A is a powerful, fast-switching transistor perfect for amplifying signals and driving loads. Contact Nexcir today to source authentic components¹⁵ and keep your production running smoothly.
