Why is the TOP253PN Considered the “Universal Plugin” for Converting Linear to Switching Power Supplies?

Many older electronic devices suffer from overheating issues¹. You worry about the reliability of these machines. You need a solution that improves efficiency without redesigning the whole system.

The TOP253PN² is the ideal solution because it integrates high-voltage power MOSFETs³ and controllers into a small package. It drastically improves efficiency, reduces heat, and fits easily into existing circuit board footprints⁴ for retrofitting older medical and audio devices.

I have worked with many engineers who face a difficult choice. They have expensive, classic equipment that works well, but the power supply unit is the weak link. The old linear supplies are heavy and get very hot. Replacing the whole machine is too expensive. Replacing just the power supply is the smart move. I want to explain why the TOP253PN² is the specific part that makes this upgrade possible and easy.

Why do classic linear power supplies⁵ cause headaches for maintenance teams?

Your old machines are reliable but inefficient. They waste energy. The heat kills other components.

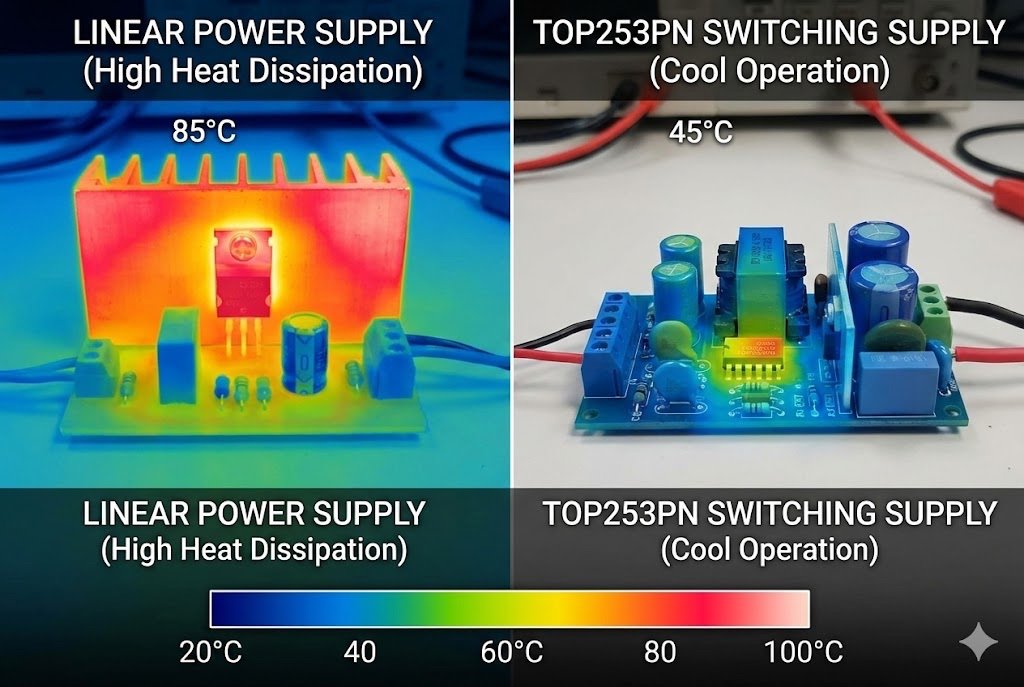

The linear power supplies⁵ regulate voltage by burning excess energy as heat. This creates thermal stress⁶ inside the device enclosure, leading to frequent capacitor failures and higher electricity bills compared to modern switching solutions.

I need to explain the physics here simply. A linear power supply acts like a variable resistor. If you need 5 volts but the input is 12 volts, the supply turns the extra 7 volts into heat. In my experience at Nexcir⁷, I see this cause problems in enclosed medical devices. The heat has nowhere to go. It dries out the electrolytic capacitors nearby. This causes the device to fail sooner than it should.

This is a major problem for legacy equipment. You might have a medical scanner or a high-end audio amplifier. The core technology is good, but the power unit is a heater. This is where the difference becomes clear. A switching power supply⁸, like one built with the TOP253PN², does not burn the extra energy. It switches the power on and off thousands of times a second. It only takes what it needs.

The Efficiency Gap⁹

The difference in numbers is huge.

• Linear Supply: Often 40% to 50% efficient.
• Switching Supply (TOP253PN²): Can reach over 80% efficient.

This means less heat inside the box. I always tell my clients that heat is the enemy of electronics. By removing the heat source, you extend the life of every other part on the board.

How does the TOP253PN² design fit into tight spaces?

You have no room on the board. You need a small part. This chip solves that.

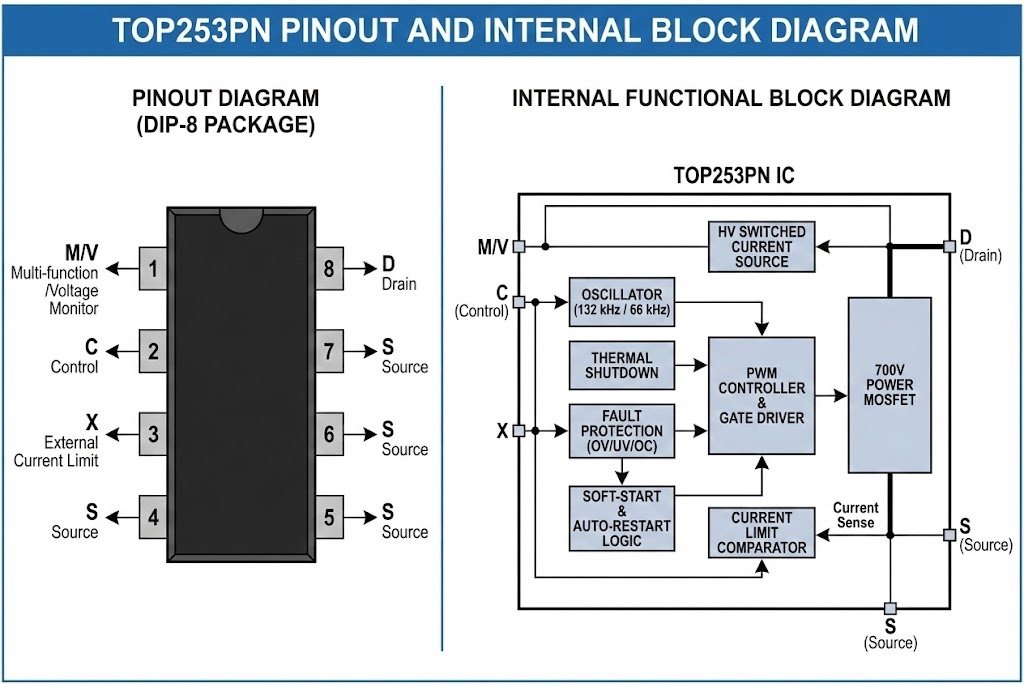

The TOP253PN² uses the TOPSwitch-HX technology¹⁰, combining the controller and MOSFET in a standard 8-pin package. This integration removes the need for bulky heatsinks and reduces the total number of external parts required for the circuit.

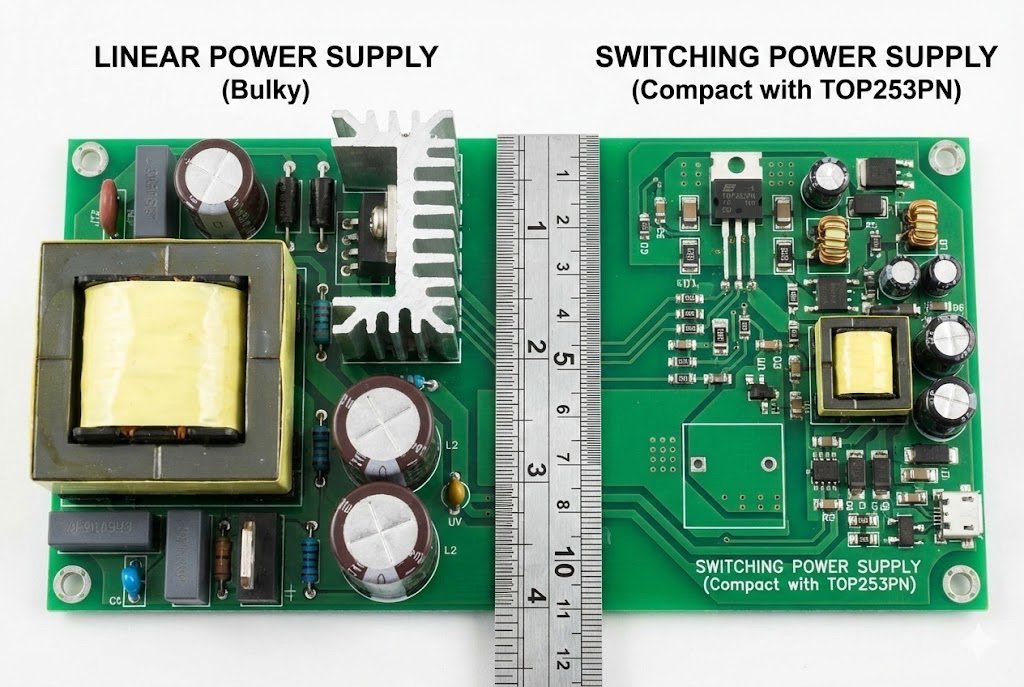

When I look at a retrofit project¹¹, space is always the first constraint. You cannot make the box bigger. You must fit the new solution into the old space. The TOP253PN² is famous for this. It is a "monolithic" design. This means the brain of the power supply and the muscle (the 700V MOSFET) are in one piece of silicon.

No Heatsink Needed

In many applications up to a certain power level, you do not even need a metal heatsink. The chip uses the copper on the circuit board to cool itself. This is a game-changer. In old linear supplies, the heatsink takes up half the room. With the TOP253PN², that space becomes free.

Fewer External Parts

I also value simplicity. To make this chip work, you do not need a complex web of extra parts. You need a transformer, a few capacitors, and diodes. The feedback loop is simple. This matters because fewer parts mean fewer things can break. It also means the design is cheaper to build.

The "P" in PN

The "P" stands for the DIP-8 package. This is the standard chip shape with legs that go through the board. This is perfect for repair work. You do not need expensive robotic soldering tools. A technician can solder this by hand easily. This makes it very popular for modifying older boards where surface mount technology might be difficult to use.

Why is this chip perfect for medical and audio equipment upgrades?

Noise is a worry in audio. Reliability is key in medical. This chip handles both.

This component operates at a high frequency (132 kHz) which helps minimize transformer size while maintaining stable output. Its EcoSmart technology¹² ensures low standby power, which is crucial for medical devices that are always plugged in.

I work with many clients in the medical and audio sectors. These two fields have very strict requirements. You cannot just put any power supply into a patient monitor or a studio mixer.

Medical Equipment Retrofits

In medical devices, standby power is a big issue. Many machines sit idle for hours. The TOP253PN² has a feature called EcoSmart. It effectively shuts itself down when no power is needed, consuming very little energy. Furthermore, safety is non-negotiable. This chip has built-in protections.

1. Thermal Shutdown: If it gets too hot, it turns off.
2. Over-Voltage Protection: If the voltage spikes, it clamps it down.
3. Short Circuit Protection: If a wire touches where it shouldn't, the chip stops the power.

I often recommend this for retrofitting because it adds these modern safety layers to machines that were built 20 years ago.

Audio Equipment Considerations

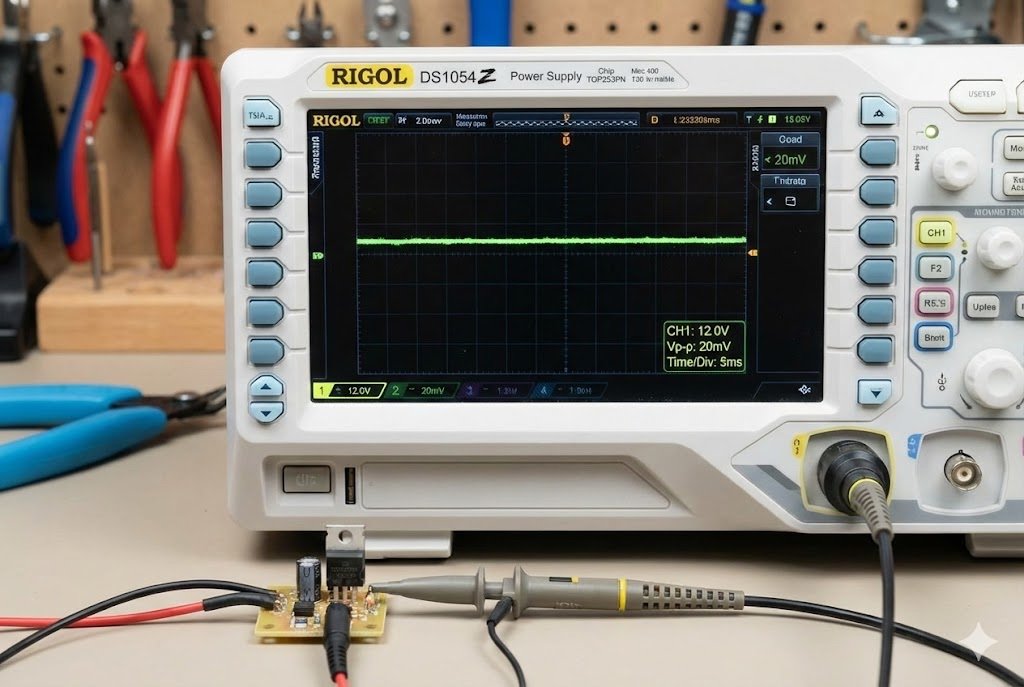

Audio engineers hate "switching noise." They prefer linear supplies because they are quiet. However, the TOP253PN² uses a technique called "frequency jittering¹³." Instead of switching at one exact frequency, it spreads the signal out slightly. This lowers the electromagnetic interference (EMI). It makes the noise much easier to filter out. With a proper layout, I have seen this chip perform just as cleanly as a linear supply, but without the heat.

How can you ensure long-term availability¹⁴ for these maintenance parts?

You find a design. The part goes obsolete. You panic. We prevent that situation.

The TOP253PN² is a mature product from Power Integrations with a long lifecycle. Sourcing it through a reliable distributor like Nexcir⁷ ensures you get genuine parts, avoiding the risks associated with counterfeit chips¹⁵ in critical repairs.

The biggest fear for a maintenance manager is "End of Life" (EOL). You spend time designing a retrofit kit for your machines. Then, six months later, the chip maker stops making the chip. This is a disaster.

The Value of Maturity

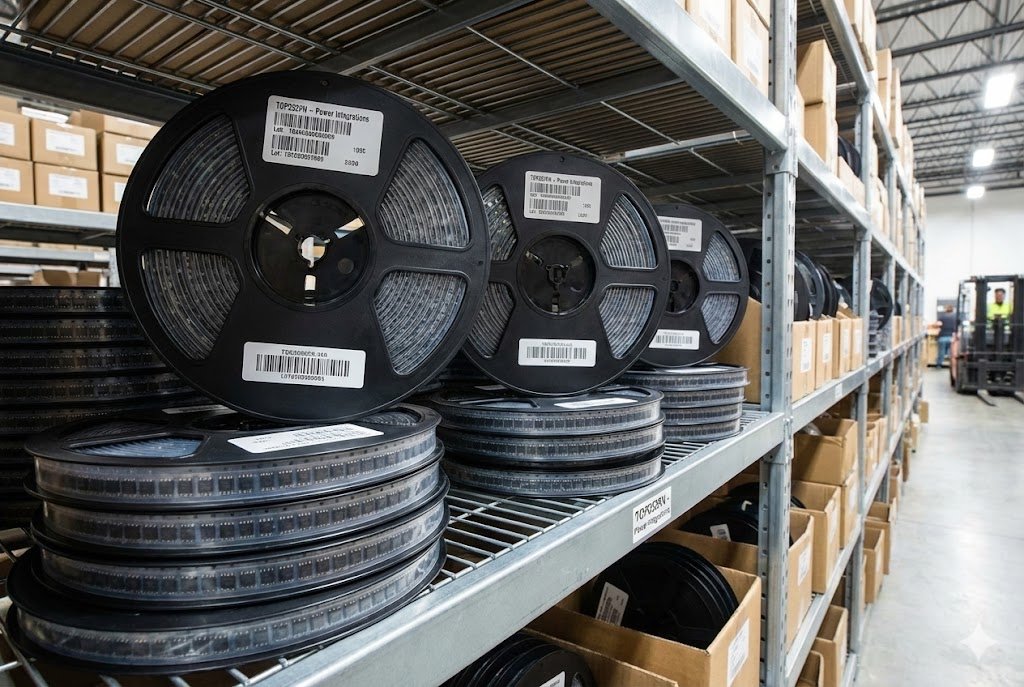

The TOP253PN² is part of the TOPSwitch-HX family. This is a very mature product line. It has been around for years and is widely used. This is actually a good thing. It means the manufacturing process is perfect. It means the supply is stable. At Nexcir⁷, we track the lifecycle of these components. We know that this part will be available for a long time. This gives you the confidence to use it in your long-term service plans.

The Risk of Counterfeits

Because this chip is so popular, it is also faked often. I have seen fake chips that look real but burn out in five minutes. They lack the safety circuits inside.

• The Fake: Might be a cheaper chip rebranded. It will overheat.
• The Real Nexcir⁷ Part: Sourced from authorized channels. It handles the full 700V load.

When you are repairing a medical device, you cannot risk a fake part. It is a liability. My team at Nexcir⁷ ensures every TOP253PN² we ship is authentic. We check the traceability. We make sure that your retrofit project¹¹ is safe. We understand that you are not just buying a chip; you are buying the future reliability of your equipment.

Conclusion

The TOP253PN² is the ultimate upgrade tool because it offers high efficiency, compact size, and robust safety features, making it the perfect choice for modernizing classic linear power systems.
