= A3982SLBTR-T – Power Management (Pmic) =

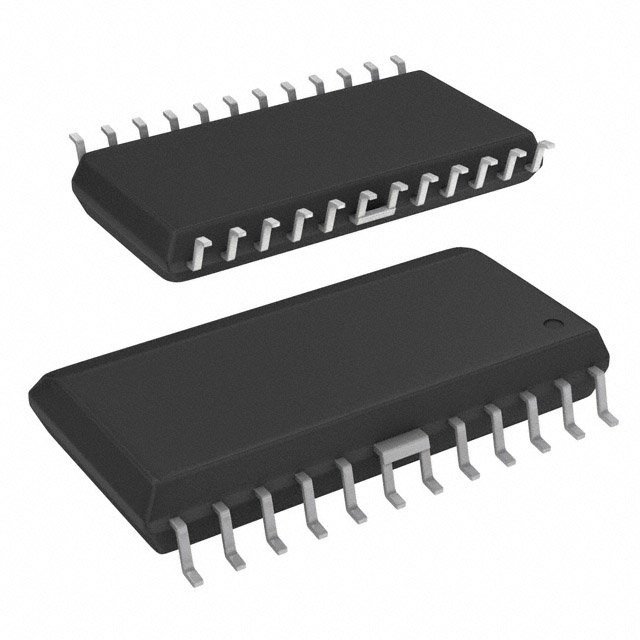

A3982SLBTR-T
Part Number: A3982SLBTR-T
Manufacturer
ALLEGRO
Package
24-SOIC
Date Code
23+
Category
Power Management (PMIC)
Product Details
Stock Status
5000
MOQ
1000
Lead Time
1-2 weeks
Product Status
Active
Technical Specifications
Operating Temperature
-20°C ~ 150°C (TJ)
MSL
3 (168 Hours)
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Description
Product Details
The A3982 is a complete stepper motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full- and half-step modes, with an output drive capacity of up to 35 V and ±2 A. The A3982 includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes. The translator is the key to the easy implementation of the A3982. Simply inputting one pulse on the STEP input drives the motor one step. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The A3982 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened
Applications
Bipolar Motor Driver DMOS Logic 24-SOIC
