= AD5700-1BCPZ-R5 – Interface =

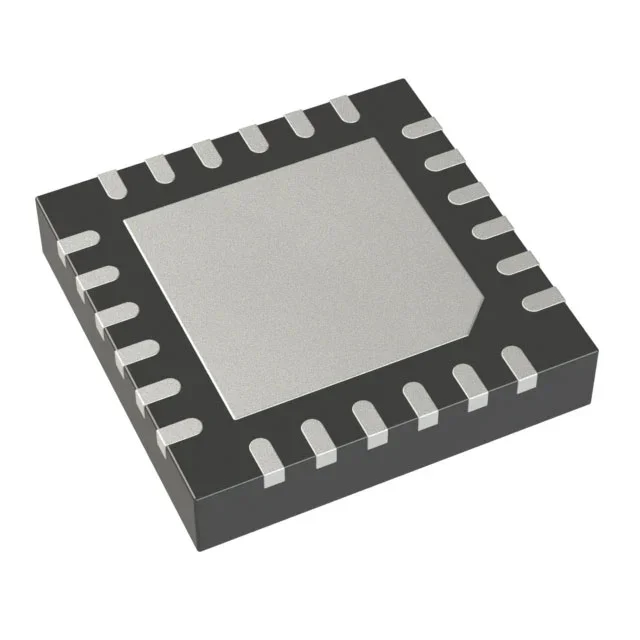

AD5700-1BCPZ-R5
Part Number: AD5700-1BCPZ-R5
Manufacturer
ADI
Package
24-LFCSP-WQ
Date Code
25+
Category
Interface
Product Details
Stock Status
5000
MOQ
500
Lead Time
1-2 weeks
Product Status
Active
Technical Specifications
Operating Temperature
-40°C ~ 125°C
MSL
3 (168 Hours)
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Description
Product Details
The AD5700/AD5700-1 are single-chip solutions, designed and specified to operate as a HART® FSKhalf-duplex modem, complying with the HART physical layer requirements. The AD5700/AD5700-1 integrateall of the necessary filtering, signal detection, modulating, demodulating and signal generation functions, thus requiring fewexternal components. The 0.5% precision internal oscillator on the AD5700-1 greatly reduces the board space requirements, making it ideal for line-powered applications in both master and slave configurations. The maxi mum supply current consumption is 115µA, making theAD5700/ AD5700-1 an optimal choiceforlowpowerloop-powered applica tions. Transmit waveforms are phase continuous 1200 Hz and 2200 Hz sinusoids. The AD5700/AD5700-1 containaccurate carrier detect circuitry and use a standard UART interface
Applications
