= DS1233AZ-10+ – Power Management (Pmic) =

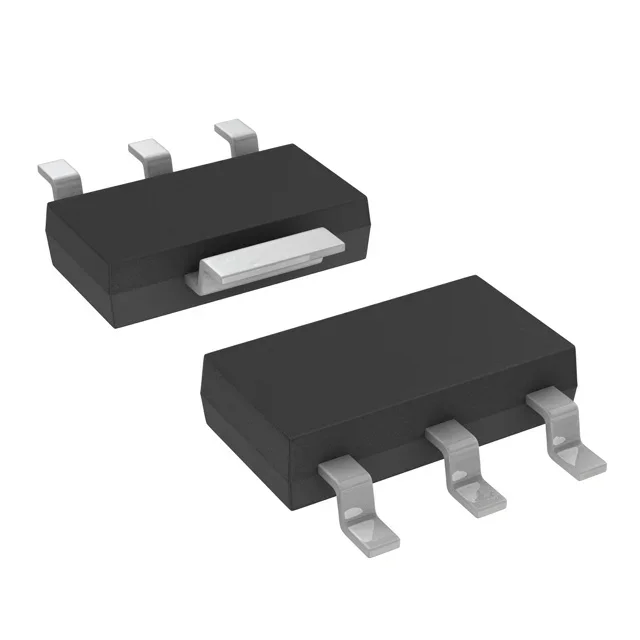

DS1233AZ-10+
Part Number: DS1233AZ-10+
Manufacturer
ADI
Package
SOT-223-3
Date Code
25+
Category
Power Management (PMIC)
Product Details
Stock Status
750
MOQ
75
Lead Time
1-2 weeks
Product Status
Active
Technical Specifications
Operating Temperature
-40°C ~ 85°C (TA)
MSL
1 (Unlimited)
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Description
Product Details
The DS1233A EconoReset monitors two vital conditions for a microprocessor: power supply and external override. A precision temperature-compensated reference and comparator circuit are used to monitor the status of the power supply (VCC). When an out-of-tolerance condition is detected, an internal power fail signal is generated which forces reset to the active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for approximately 350ms to allow the power supply and processor to stabilize. The second function of the DS1233A is pushbutton reset control. The DS1233A debounces a pushbutton closure and will generate a 350ms reset pulse upon release.
Applications
Supervisors
