= HIN232ACBNZ-T – Interface =

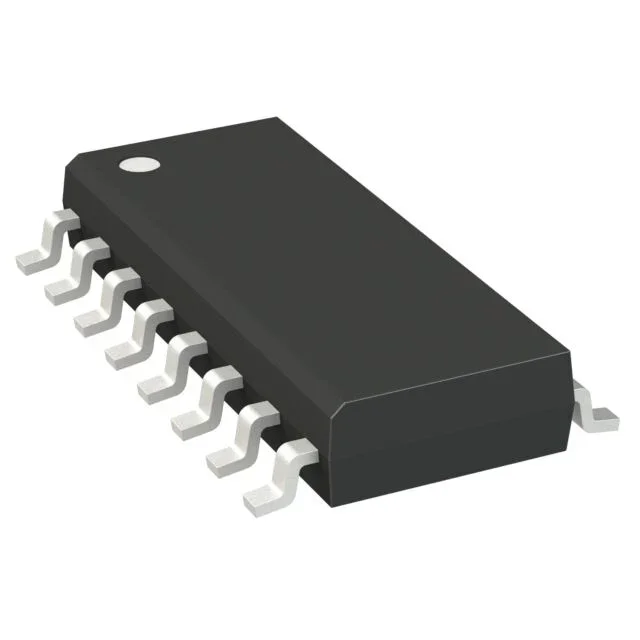

HIN232ACBNZ-T
Part Number: HIN232ACBNZ-T
Manufacturer
RENESAS
Package
16-SOIC
Date Code
25+
Category
Interface
Product Details
Stock Status
25000
MOQ
2500
Lead Time
1 week
Product Status
Active
Technical Specifications
Operating Temperature
0°C ~ 70°C
MSL
3 (168 Hours)
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Description
Product Details
The HIN232A high-speed RS-232 transmitter/receiver interface circuit meets all ElA high-speed RS-232E and V.28 specifications, and is particularly suited for those applications where ±12V is not available. They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300W power-off source impedance. The receivers can handle up to ±30V input, and have a 3kW to 7kW input impedance. The receivers also feature hysteresis to greatly improve noise rejection
Applications
Drivers, Receivers, Transceivers
Downloads
Download DatasheetNeed Assistance?
enquiry@nexcir.com
Response Time
Within 24 hours
