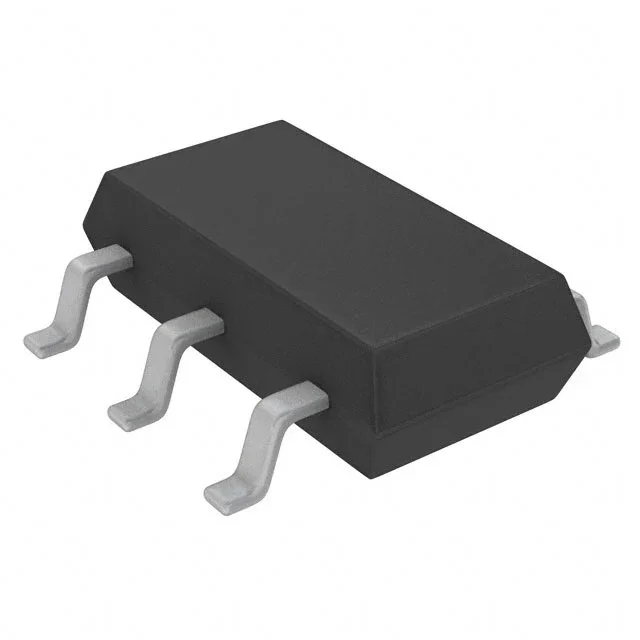

LTC4412HVIS6#TRMPBF

Description

Product Details

The LTC® 4412HV controls an external P-channel MOSFET to create a near ideal diode function for power switchover or load sharing. This permits highly efficient OR’ing of mul tiple power sources for extended battery life and low self heating. When conducting, the voltage drop across the MOSFET is typically 20mV. For applications with a wall adapter or other auxiliary power source, the load is auto matically disconnected from the battery when the auxiliary source is connected. Two or more LTC4412HVs may be in terconnected to allow load sharing between multiple bat teries or charging of multiple batteries from a single charger. The LTC4412HV is an extended supply and temperature range version of the LTC4412. The wide supply operating range supports operation from one to eight Li-Ion cells in series. The low quiescent current (11µA typical) is independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection. The STAT pin can be used to enable an auxiliary P-channel MOSFET power switch when an auxiliary supply is detected. This pin may also be used to indicate to a micro controller that an auxiliary supply is connected. The con trol (CTL) input enables the user to force the primary MOSFET off and the STAT pin low. The LTC4412HV is available in a low profile (1mm) SOT-23 package

Applications

OR Controllers, Ideal Diodes
