MCP6004 vs LM324: Key Differences, Specs, and Which Op-Amp Should You Choose?
Choosing between MCP6004 and LM324 is a common decision in analog circuit design.
Both are quad operational amplifiers (4 op-amps per chip), but they are designed for different performance levels.
The key difference:
MCP6004 is a modern rail-to-rail op-amp optimized for low-voltage systems1, while LM324 is a classic low-cost op-amp with limited output range.

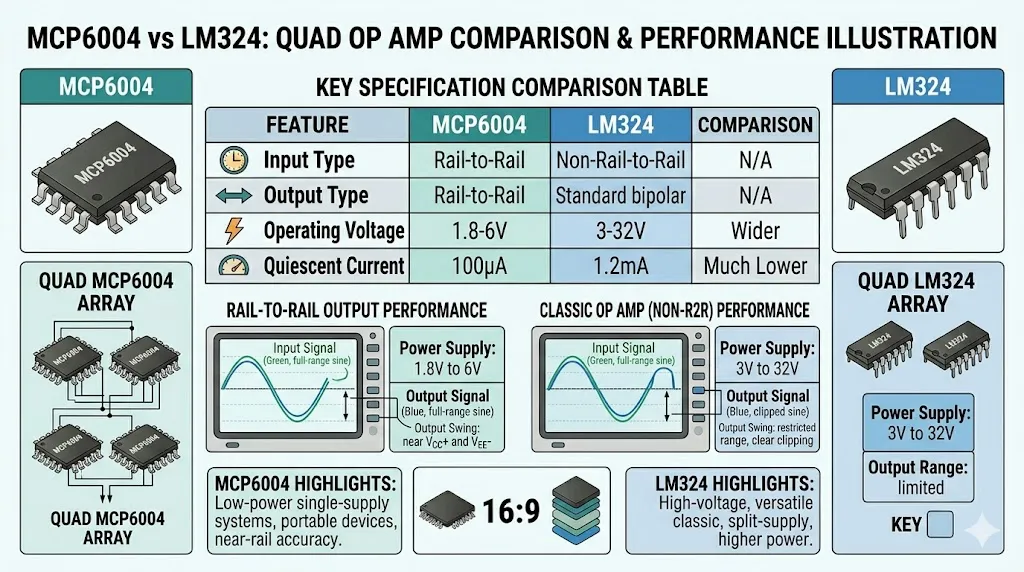

MCP6004 vs LM324 Quick Comparison
| Feature | MCP6004 | LM324 |
|---|---|---|
| Amplifiers | 4 (Quad) | 4 (Quad) |
| Supply Voltage | 1.8V – 6V | 3V – 32V |
| Rail-to-Rail Output | Yes | No |
| Input Type | Rail-to-Rail | Limited |
| Gain Bandwidth | 1 MHz | 1 MHz |
| Slew Rate | 0.6 V/µs | 0.5 V/µs |
| Technology | CMOS | Bipolar |
👉 Conclusion:
MCP6004 is better for modern low-voltage systems, while LM324 is suitable for legacy and cost-sensitive designs.
What Is the Difference Between MCP6004 and LM324?
Many engineers compare MCP6004 vs LM324 specs when designing analog circuits.
The biggest differences are:
- MCP6004 → rail-to-rail input/output
- LM324 → limited output swing
- MCP6004 → low-voltage operation (ideal for 3.3V/5V systems)
- LM324 → works in higher voltage environments
👉 Choosing between MCP6004 vs LM324 depends on your voltage and precision requirements.

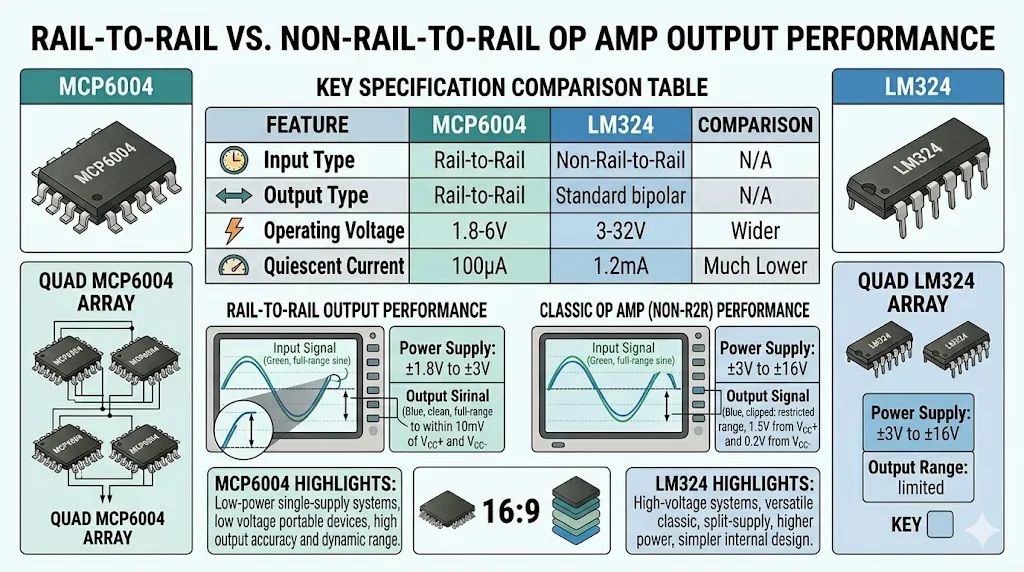

Output Voltage Behavior (Critical Difference)
MCP6004:
- Output can swing close to both VCC and GND2
- Ideal for microcontroller ADC inputs
LM324:
- Output cannot reach VCC3
- Typically stops ~1.5V below supply
👉 Key Insight:
LM324 may cause signal clipping in low-voltage systems.
MCP6004 Overview
MCP6004 is a modern CMOS op-amp designed for low-power and low-voltage applications.
Best For:
- 3.3V / 5V systems
- Battery-powered devices
- Sensor signal conditioning
👉 👉 Check MCP6004 price & availability
https://nexcir.com/hot-offer/mcp6004-i-sl/
LM324 Overview
LM324 is a widely used classic op-amp.
Best For:
- Industrial systems
- High-voltage circuits
- Cost-sensitive designs
When Should You Choose MCP6004 vs LM324?
Choose MCP6004 if:
- You use 3.3V or 5V systems
- You need rail-to-rail output
- You require accurate ADC readings
Choose LM324 if:
- You use higher supply voltage (>12V)
- Cost is critical
- Precision is not required
Can MCP6004 Replace LM324?
Yes — in most low-voltage designs.
👉 Benefits:
- Better signal accuracy4
- Full voltage swing
- Lower power consumption
❗ But:
- Not suitable for high-voltage (>6V) systems
Common Design Risks (Important)
Using LM324 in modern designs may cause:
- ADC reading errors
- Limited dynamic range
- Output saturation issues
👉 Many engineers replace LM324 with MCP6004 in new designs.
Why Engineers Prefer MCP6004 Today
Modern electronics require:
- Lower voltage
- Higher precision
- Better efficiency
👉 MCP6004 meets these needs, while LM324 is considered outdated for many applications5.
🔥 Ready to Source MCP6004 or LM324?
For production and procurement:
- 100% original components
- Global sourcing network
- Fast RFQ support
👉 👉 Get MCP6004 price now
https://nexcir.com/hot-offer/mcp6004-i-sl/
👉 👉 Request bulk quote
https://nexcir.com/contact
FAQ
What is the difference between MCP6004 and LM324?
MCP6004 supports rail-to-rail output, while LM324 does not.
Is MCP6004 better than LM324?
Yes, for low-voltage and precision applications.
Can MCP6004 replace LM324?
Yes, in most low-voltage designs.
Why is LM324 still used?
Because it is cheap and works in high-voltage environments.
Conclusion
MCP6004 and LM324 are both quad op-amps, but they target different applications.
- Choose MCP6004 for modern low-voltage systems
- Choose LM324 for simple, high-voltage, cost-sensitive designs
👉 In most new designs, MCP6004 is the better choice.
