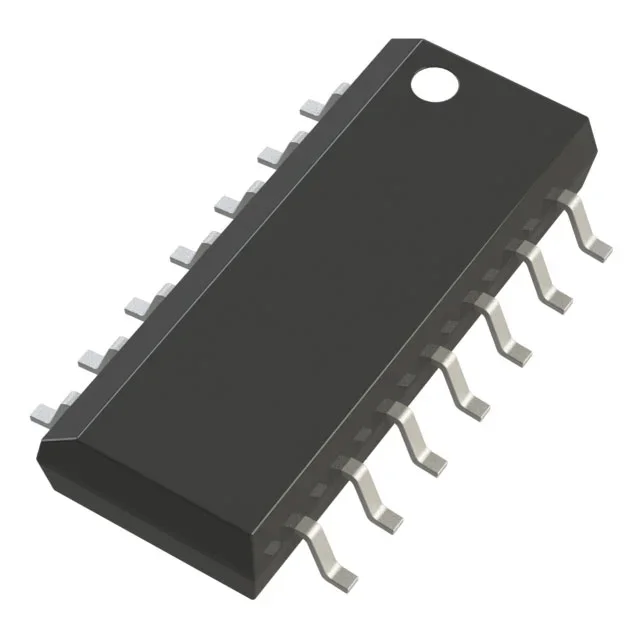

ADM3491ARZ

Description

Product Details

The ADM3483/ADM3485/ADM3488/ADM3490/ADM3491 are low power, differential line transceivers designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes the ADM3483/ADM3485/ADM3488/ ADM3490/ADM3491 ideal for power-sensitive applications. The ADM3488/ADM3490/ADM3491 feature full-duplex com munication, while the ADM3483/ADM3485 are designed for half-duplex communication. FUNCTIONAL BLOCK DIAGRAMS R D RO VCC RE DI DE ADM3483/ ADM3485 A GND B 05524-027 Figure 1. R D RO DI ADM3488/ ADM3490 A B Z Y 05524-026 VCC GND Figure 2. R D RO RE DI DE ADM3491 A B Z Y 05524-025 Figure 3. The ADM3483/ADM3488 feature slew rate limited drivers that minimize EMI and reduce reflections caused by improperly ter minated cables, allowing error-free data transmission at data rates up to 250 kbps.
