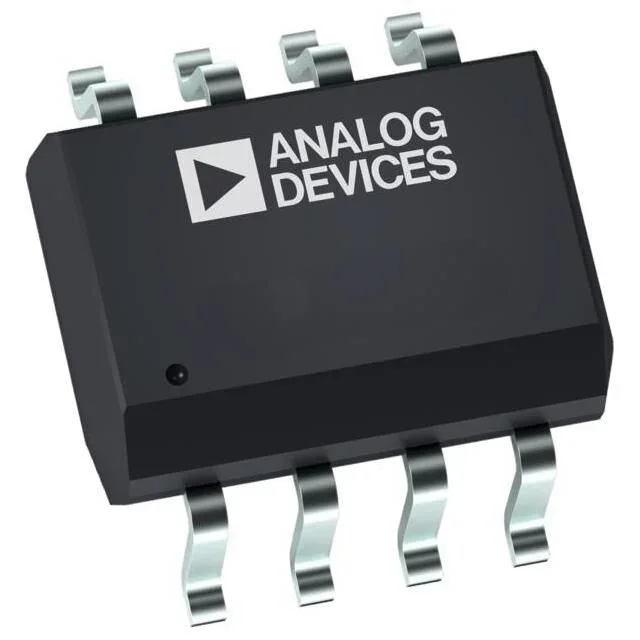

LTC1484CS8#TRPBF

Description

Product Details

The LTC® 1484 is a low power RS485 compatible trans ceiver. In receiver mode, it offers a fail-safe feature which guarantees a high receiver output state when the inputs are left open, shorted together or terminated with no signal present. No external components are required to ensure the high receiver output state. Both driver and receiver feature three-state outputs with separate receiver and driver control pins. The driver outputs maintain high impedance over the entire com mon mode range when three-stated. Excessive power dissipation caused by bus contention or faults is pre vented by a thermal shutdown circuit that forces the driver outputs into a high impedance state. Enhanced ESD protection allows the LTC1484 to with stand ±15kV (human body model), IEC-1000-4-2 level 4 (±8kV) contact and level 3 (±8kV) air discharge ESD without latchup or damage. The LTC1484 is fully specified over the commercial and industrial temperature ranges and is available in 8-lead MSOP, PDIP and SO packages

Applications

Drivers, Receivers, Transceivers
